Aluminum nitride (AlN), as a structurally steady hexagonal wurtzite covalently bonded substance, has actually shown broad application capacity in the fields of electronic devices and optoelectronics due to its distinct physical and chemical buildings. Its crystal structure is based on an AlN4 tetrahedron as the fundamental system, with room team P63mc belonging to the hexagonal crystal system. This structure offers AlN a collection of exceptional residential or commercial properties.
Main features of AlN porcelains
High thermal conductivity: Compared with alumina ceramics, the thermal conductivity of AlN is 5 to 10 times higher. In theory, the thermal conductivity of single crystal materials at 300K can reach 319W/(m · K).
Thermal development matching: Its thermal growth coefficient resembles that of semiconductor silicon products, which contributes to device combination.
Excellent mechanical and electric buildings: It has high insulation resistance and reduced dielectric loss and appropriates for high-reliability digital product packaging.
Hassle-free for multi-layer wiring: sustains miniaturization and high-density assimilation of product packaging.
Eco-friendly: The non-toxic characteristics satisfy modern environmental management needs.

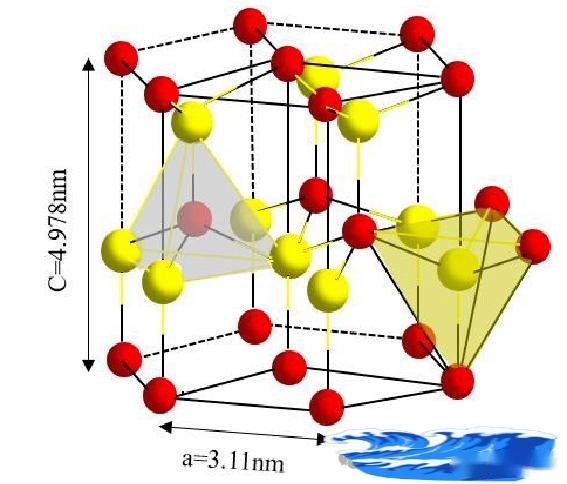

(Aluminum Nitride (AlN) Crystal Structure)
Elements influencing the thermal conductivity of AlN ceramics
Although the academic thermal conductivity of AlN is incredibly high, its efficiency in functional applications is limited by many elements, mostly consisting of:
1. Microstructure: Phonon scattering is the key device of warmth conduction. Grain boundaries, interfaces, 2nd phases, flaws, and so on, will certainly influence the mean cost-free path of phonons, thereby affecting thermal conductivity. High-purity, low-defect single-crystal AlN has a much longer phonon-free course and higher thermal conductivity.
2. Oxygen pollutant material: The strong fondness of AlN with oxygen makes it simple to present oxygen impurities, developing light weight aluminum oxide films and latticework defects, such as light weight aluminum openings, which significantly minimize the mean complimentary course of phonons and therefore reduce thermal conductivity. When the oxygen concentration is listed below 0.75%, oxygen atoms mostly change nitrogen atoms; exceeding this focus will certainly lead to the disappearance of aluminum jobs and the generation of ductility problems, additionally affecting thermal conductivity.
3. Sintering process and additives: By choosing appropriate sintering additives (such as Y2O3-Li2O, Y2O3-CaC2 and other composite systems), densification sintering can be attained at a lower temperature while lowering the development of oxygen contaminations and 2nd phases, efficiently boosting the thermal conductivity of AlN ceramics. The duty of these additives is to cleanse the grain limits, optimize the microstructure, and help with the effective transmission of phonons.
Comprehensive strategy
(TRUNNANO Aluminum Nitride (AlN) Powder)
In order to acquire AlN ceramics with high thermal conductivity, it is needed to think about the purity of the material thoroughly, the sintering conditions and the choice of additives to lessen inner flaws, specifically to manage the content of oxygen pollutants and maximize the microstructure.
By carefully regulating the sintering process and adopting a reliable composite sintering additive system, it is anticipated that the high thermal conductivity AlN substratum needed for large-scale manufacturing applications can be attained while ensuring material performance. This is not only critical for boosting the warmth dissipation performance of digital tools, but likewise offers an essential material basis for promoting the growth of semiconductor innovation.
