Why does silicon nitride play an important function in chips? Evaluate the benefits of silicon nitride contrasted to various other products.
In chip production, there is a material that plays an essential duty, that is silicon nitride (SiNx). Although it may not receive the exact same attention as other more widely known semiconductor products such as silicon (Si), gallium arsenide (GaAs) or gallium nitride (GaN), its significance is indisputable. Many chips will use this product.

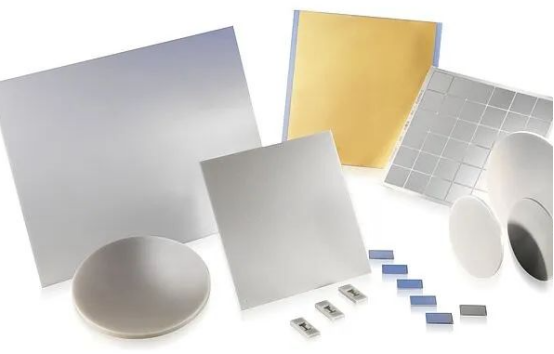

(Application of silicon nitride in chips)
1. Why is it SiNx?
Mindful buddies have observed that I utilized SiNx when writing the chemical formula of silicon nitride. Buddies that have studied secondary school chemistry ought to recognize that N is the 5th major group element. Rationally, the valence must be -3, while the chemical valence of silicon is +4. The chemical formula of silicon nitride must be Si3N4. Just how can it be SiNx?
First, let’s discuss the multivalent state of nitrogen: nitrogen has several valence states, mainly due to the fact that it has 5 valence electrons, and nitrogen atoms can share these electrons in different ways. Nitrogen can create various valence states, which mainly depend upon the number of electrons it shows to various other elements.
For nitrogen, its most stable valence state is -3, such as in ammonia (NH3) and gallium nitride (GaN). Nonetheless, nitrogen can likewise form a positive valence state by losing electrons, such as the +5 valence state in nitric acid (HNO3). In addition, nitrogen can likewise create a valence state in between -3 and +5, such as the +3 valence state in nitrous acid (HNO2) or the +1 and +2 valence states in some organic substances.
Secondly, let’s speak about silicon nitride:
In the semiconductor industry, silicon nitride utilized in different applications is typically non-uniform, generally represented by SiNx. SiNx is an amorphous material whose residential or commercial properties rely on the proportion of nitrogen to silicon, that is, the worth of x. When the worth of x modifications, the physical and chemical homes of silicon nitride will additionally alter. Silicon nitride does be available in lots of types, including Si3N4, Si2N2, SiN, and so on

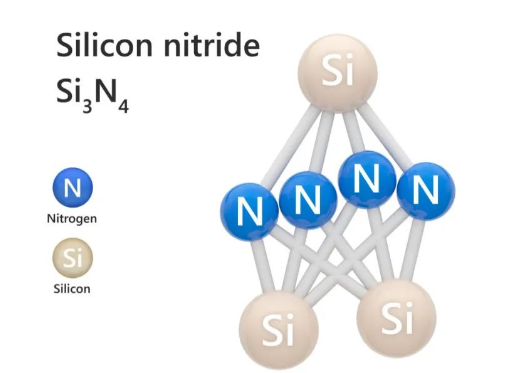

( structure of Si3N4)
Si3N4 is a crystalline product, which indicates that its silicon and nitrogen ratio is dealt with. When the value of x amounts to 4/3, SiNx amounts to Si3N4. Nonetheless, in useful applications, SiNx is frequently non-uniform, and its silicon and nitrogen proportion can be regulated by transforming the specifications of the PVD or CVD process.
2. What is the role of SiNx in chip production?
Silicon nitride has superb insulation homes, and its resistivity can be as high as 10 ^ 14 Ω · cm, far going beyond some common protecting materials such as silicon oxide (SiO2). Its reduced dielectric consistent makes it a suitable isolation layer in microwave and RF applications. The silicon nitride layer additionally contributes in obstructing the diffusion of pollutants in the chip. It can stop dopants such as boron and phosphorus from altering tool qualities with diffusion. Additionally, it can likewise protect against the diffusion of metal ions to stop faults such as short circuits.
The exceptional thermal security of silicon nitride is determined by its special chemical residential or commercial properties and crystal framework. It can continue to be stable in a high-temperature setting without chemical decomposition or physical form changes like other products. That’s because in the crystal framework of silicon nitride, each silicon atom is integrated with 4 nitrogen atoms in the type of a tetrahedron, and each nitrogen atom is likewise combined with four silicon atoms in the form of a tetrahedron. This structure makes the crystal lattice of silicon nitride very secure and hard to flaw. As a result, it is used as a gate-insulating layer when producing high electron mobility transistors (HEMTs).

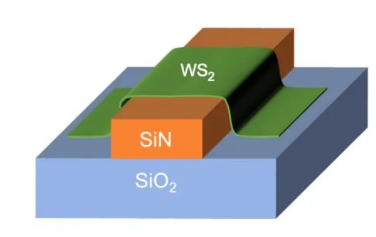

( role of SiNx in chip manufacturing)
3. What are the benefits of SiNx over SiO2?
Better thermal security, harder hardness, and harder to engrave.
